TerraE INR18650-42E

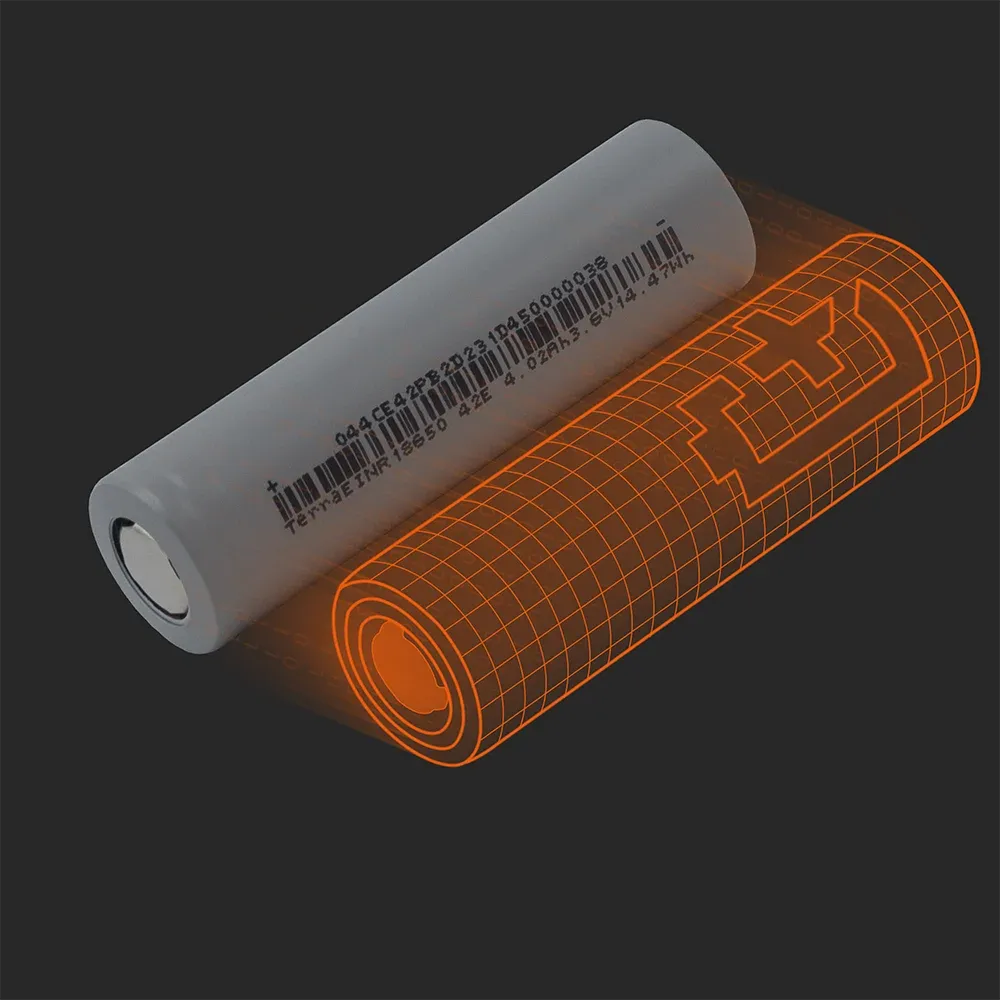

Get everything you need for the battery cell TerraE INR18650-42E: Extensive measurement data in the total operation regime, a high-precision, physical battery model with global validity, and a teardown report that contains all details about materials and microstructures.

Cell Origin purchased on free market
Cell Format 18650
Dimen­sions 18.2 x 64.8 mm
Weight 47.6 g
Capacity
defin­i­tion
The nominal capacity origi­nates from the manufac­tur­er’s data sheet, if avail­able. When the data sheet is unavail­able, the nominal capacity is estimated. Batemo measured the C/10 capacity by discharging the cell at an ambient temper­a­ture of 25°C from 100% with a constant current of 0.41A (0.1C) until reaching the voltage of 2.5V. The thermal boundary condi­tion is free convection.
nominal 4.05 Ah
C/10 4.05 Ah
Current
defin­i­tion
All quanti­ties are measure­ment results from the Batemo battery labora­tory.
The contin­uous current is the highest current that completely discharges the cell without overheating it. There­fore, the cell is discharged from 100% state of charge (SOC) at an ambient temper­a­ture of 25°C with a constant current until a residual state of charge of 10% and either the lower voltage limit of 2.5V or 90% of the maximum surface temper­a­ture (63°C) is reached.
The peak current is the current that the cell can supply for 5 minutes. The cell is there­fore discharged from 100% SOC at an ambient temper­a­ture of 25°C with a constant current until it reaches either the lower voltage limit of 2.5V or the maximum surface temper­a­ture of 70°C after 5 minutes. For cells that reach the maximum surface temper­a­ture, the measured current is taken directly as the peak current. For cells that do not reach the maximum surface temper­a­ture after 5 minutes because they reach the lower voltage limit first, the measured current is multi­plied by a correc­tion factor that estimates the current that would have heated the cell to the maximum surface temper­a­ture within 5 minutes.
The thermal boundary condi­tion is free convec­tion. These operating conditions may be outside the cell manufacturer’s specification.
contin­uous 8.47 A
peak 16.0 A
Energy
defin­i­tion
Batemo measured the C/10 energy by discharging the cell at an ambient temper­a­ture of 25°C from 100% with a constant current of 0.41A (0.1C) until reaching the voltage of 2.5V. The thermal boundary condi­tion is free convection.
C/10 14.4 Wh
Power
defin­i­tion
All quanti­ties are measure­ment results from the Batemo battery labora­tory.
The contin­uous power is the highest power that completely discharges the cell without overheating it. There­fore, the cell is discharged from 100% state of charge (SOC) at an ambient temper­a­ture of 25°C with a constant current until a residual state of charge of 10% and either the lower voltage limit of 2.5V or 90% of the maximum surface temper­a­ture ( 63°C) is reached.
The peak power is the power the cell can supply for 5 minutes. The cell is there­fore discharged from 100% SOC at an ambient temper­a­ture of 25°C with a constant current until it reaches either the lower voltage limit of 2.5V or the maximum surface temper­a­ture of 70°C after 5 minutes. For cells that reach the maximum temper­a­ture limit, the measured power is directly taken as peak power. For cells that do not reach the maximum surface temper­a­ture after 5 minutes because they reach the lower voltage limit first, the measured power is multi­plied by a correc­tion factor that estimates the power that would have heated the cell to the maximum surface temper­a­ture within 5 minutes.
The thermal boundary condi­tion is free convec­tion. These operating conditions may be outside the cell manufacturer’s specification.
contin­uous 28.2 W
peak 55.1 W
Energy Density
defin­i­tion
The energy densi­ties result from the C/10 energy, the cell weight and the cell volume.
gravi­metric 302 Wh/kg
volumetric 851 Wh/l
Power Density
defin­i­tion
The power densi­ties result from the peak power, the cell weight and the cell volume.
gravi­metric 1.16 kW/kg
volumetric 3.25 kW/l

TerraE INR18650-42E Model

The Batemo Cell Model of the lithium-ion battery cell TerraE INR18650-42E is a high-preci­sion, physical cell model with global validity. As a digital twin it seamlessly integrates into your research, development and battery analytics by basing your decisions on simula­tions. See the details to learn more about the features and capabil­i­ties of the Batemo Cell Model. Batemo demon­strates the accuracy and validity of the Batemo Cell Model by comparing battery simula­tion and measure­ment data in the range given below. Valida­tion is exten­sive, exper­i­mental charac­ter­i­za­tion covers the total opera­tional area of the cell: At low and high temper­a­tures, up to the maximal current and in the whole state of charge range.

State of Charge Range 0 … 100%
Current Range
defin­i­tion

The current range are the electrical current limits as used in the Batemo battery labora­tory. Please see the TerraE INR18650-42E data sheet for the precise defin­i­tion of the current safe area of opera­tion of the cell.
-20 A discharge … 6 A charge (-5.0C … 2.0C)
Voltage Range
defin­i­tion

The voltage range are the electrical voltage limits as used in the Batemo battery labora­tory. Please see the TerraE INR18650-42E data sheet for the precise defin­i­tion of the voltage safe area of opera­tion of the cell.
2.5 … 4.2 V
Temper­a­ture Range
defin­i­tion

The temper­a­ture range are the thermal limits as used in the Batemo battery labora­tory. Please see the TerraE INR18650-42E data sheet for the precise defin­i­tion of the temper­a­ture safe area of opera­tion of the cell.
-20 … 70 °C

Moreover, the Batemo Cell Model valida­tion will be fully trans­parent. The Batemo Cell Data contains the raw measure­ment and simula­tion data. For all exper­i­ments the voltage, temper­a­ture, power and energy accura­cies are calcu­lated. This allows straight-forward evalu­a­tion and analysis of the Batemo Cell Model validity. The graphs show a selec­tion of charac­ter­istic data of the cell TerraE INR18650-42E to evaluate the cell perfor­mance. The predic­tion of the Batemo Cell Model is included as soon as the Batemo Cell Model is finished.

Discharge Charac­ter­is­tics

TerraE_INR1865042E_const

  • Discharge Charac­ter­is­tics: The electrical and thermal discharge behavior is strongly nonlinear.
  • Pulse Charac­ter­is­tics: The shape of different current pulses changes strongly.
  • Energy Charac­ter­is­tics: The graph visual­izes how much energy the cell can deliver when operated at different powers.
  • Power Charac­ter­is­tics: The more power the cell supplies, the shorter it can deliver the power.
  • Thermal Charac­ter­is­tics: The greater the thermal losses, the more the cell heats up, resulting in higher depleted power.

Pulse Charac­ter­is­tics

TerraE_INR1865042E_pulse

show exper­i­ment defin­i­tions

Discharge Charac­ter­is­tics
The cell is discharged from 100% SOC with different constant currents at different ambient temper­a­tures. The thermal boundary condi­tion is free convec­tion. The measure­ment stops when reaching either the voltage of 2.5V or the surface temper­a­ture of 70°C.
Pulse Charac­ter­is­tics
The cell is discharged from 100% SOC with current pulses followed by no-load phases at different ambient temper­a­tures. The thermal boundary condi­tion is free convec­tion. The measure­ment stops when reaching either the voltage of 2.5V or the surface temper­a­ture of 70°C. The graph shows a zoomed view of the measure­ment to visualize one of the pulses.
Energy Charac­ter­is­tics
The cell is discharged from 100% SOC with different constant currents at 25°C. The thermal boundary condi­tion is free convec­tion. The measure­ment stops when reaching either the voltage of 2.5V or the surface temper­a­ture of 70°C. The graph shows the derived exchanged energy and average power of the experiment.
Power Charac­ter­is­tics
The cell is discharged from 100% SOC with different constant currents at 25°C. The thermal boundary condi­tion is free convec­tion. The measure­ment stops when reaching either the voltage of 2.5V or the surface temper­a­ture of 70°C. The graph shows the derived exper­i­ment duration and average power of the experiment.
Thermal Charac­ter­is­tics
The cell is discharged from 100% SOC with different constant currents at 25°C. The thermal boundary condi­tion is free convec­tion. The measure­ment stops when reaching either the voltage of 2.5V or the surface temper­a­ture of 70°C. The graph shows the cell surface temper­a­ture at the end and the derived average power of the experiment.

Energy Charac­ter­is­tics

How much energy can it deliver?

TerraE_INR1865042E_energy

Power Charac­ter­is­tics

How long can it deliver the power?

TerraE_INR1865042E_power

Thermal Charac­ter­is­tics

How hot does it get?

TerraE_INR1865042E_thermal

The mean accura­cies and supported simula­tion tools are published as soon as the Batemo Cell Model is finished.

TerraE INR18650-42E Data

Batemo offers an exten­sive, exper­i­mental charac­ter­i­za­tion of the lithium-ion battery cell TerraE INR18650-42E. The data contains measure­ment results in the total opera­tional area of the cell. The descrip­tions and graphs below explain and show the avail­able measure­ments. The Batemo Cell Viewer allows easy and fast analysis, evalu­a­tion and compar­ison of the data. See the details to learn more.

Constant Currents

TerraE_INR1865042E_validation_const

The cell is discharged from 100% SOC or charged from 0% SOC with different constant currents at different ambient temper­a­tures. The thermal boundary condi­tion is free convec­tion. The measure­ment stops when reaching either the voltage of 2.5V or 4.2V or the surface temper­a­ture of 70°C. The graph shows for which ambient temper­a­tures and charging and discharging constant currents measure­ments are available.

Pulse Currents

TerraE_INR1865042E_validation_pulse

The cell is discharged from 100% SOC or charged from 0% SOC with current pulses followed by no-load phases at different ambient temper­a­tures. The thermal boundary condi­tion is free convec­tion. The measure­ment stops when reaching either the voltage of 2.5V or 4.2V or the surface temper­a­ture of 70°C. The graph shows for which ambient temper­a­tures and pulse currents measure­ments are available.

Power Profiles

Ambient
Temper­a­ture
Avail­able
Profiles
-20 °C profile_check
0 °C profile_check
25 °C profile_check
40 °C profile_check

The cell delivers a typical power profile from 100% SOC at different ambient temper­a­tures. The thermal boundary condi­tion is free convec­tion. The measure­ment stops when reaching either the voltage of 2.5V or the surface temper­a­ture of 70°C. The table summa­rizes for which ambient temper­a­tures the profile is available.

TerraE INR18650-42E Report

Batemo offers a detailed report of the lithium-ion battery cell TerraE INR18650-42E. The report covers all impor­tant aspects about the cell. This infor­ma­tion greatly helps you to further evaluate and compare the cell. It is a profound basis for your decisions concerning your battery system design. See the details to learn more.

Perfor­mance Overview
Cell Exterior
Cell Interior
Safety Features
Electrode Microstruc­ture and Material
